VPN Client for teachers and researchers - Ubuntu

To use this service you need a @deec.uc.pt account!

OpenVPN Installation, Configuration and Execution Manual on Ubuntu 18.04.2 LTSInstallation

Introduction:

~~This document will present, step by step, the installation, configuration and execution of OpenVPN on the Ubuntu operating system.~~

~~Preparation:~~

~~Before starting the installation and configuration of OpenVPN on your computer, you should check the following point:~~

~~Have an account for the configuration of OpenVPN, which is requested from the Management Office of the Computer Network.~~

Installation:

To use OpenVPN just run the following command “$ sudo apt-get install network-manager-openvpn-gnome”.

1549

When the installation is complete, restart the network-manager service.

Configuration

Configuration:

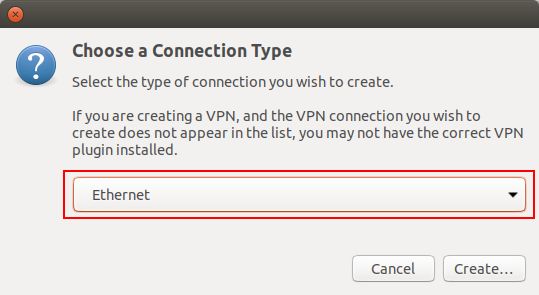

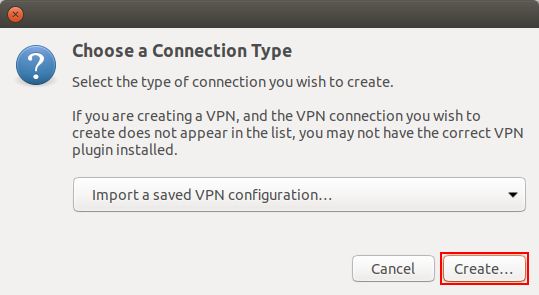

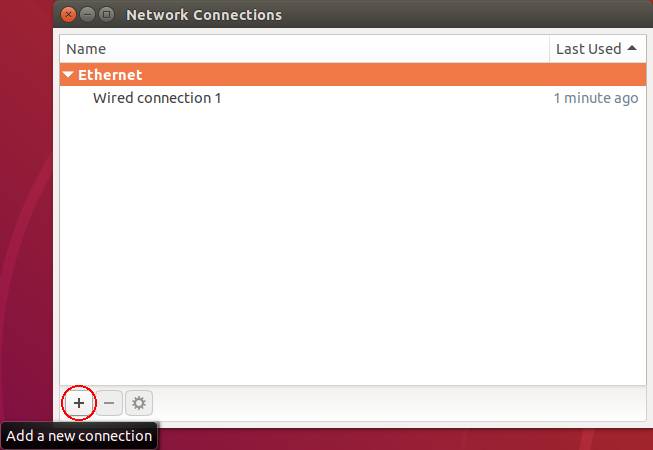

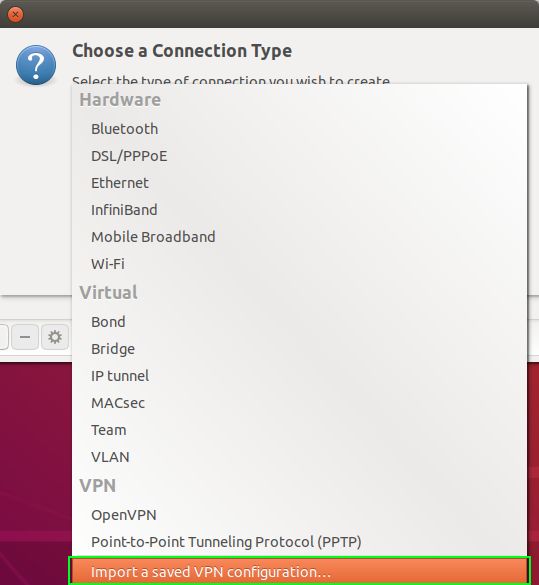

For your configuration, you must download DEEC.ovpn. Use the mouse to go to the network manager icon to go to “Edit Connections …”, then “Add a new connection” and create a connection with “Import a saved VPN configuration…”.

1551

1552

1553

1554

1555

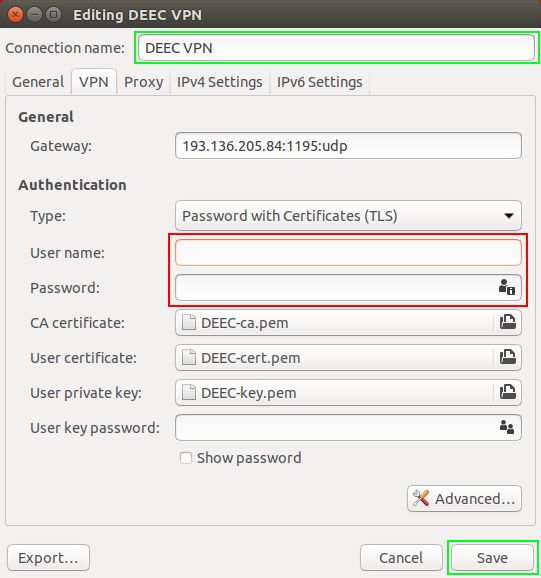

Then select the DEEC.ovpn file and enter the DEEC credentials. If you want, you can change the Connection name to an easier name to identify the DEEC VPN.

1556

1557

~~Execution:~~

Connection

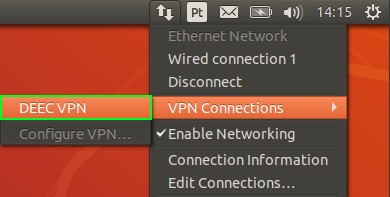

Finally select the network manager icon, go to VPN Connections and select the created VPN.

1558

1559
